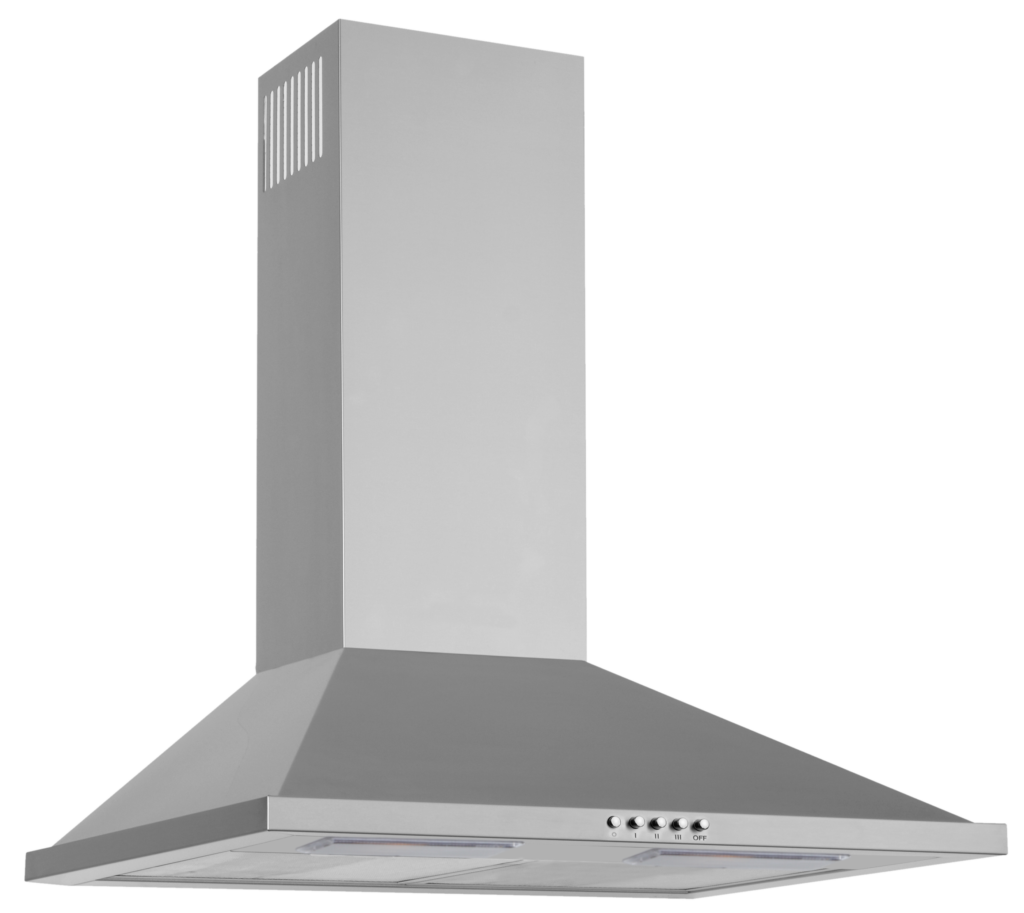

This is the most popular design of cooker hood and usually referred to as a chimney or pyramid hood. They look great in any kitchen but are a low priced option with high perceived value that belies the cost.
This 60cm version has three speed push-button control and a pair of bright lights to light up your cook top. The chimney section is height adjustable so you can get the look just right. It might be worth considering adding even more style to your kitchen by looking at the T-Line design or latest angled designs.
Out of the box this hood is suitable to be connected to ducting to pipe your cooking air outside although recirculating mode in easily accommodated and effective with the addition of charcoal filters, you’ll need a CF002 filters for this hood and they a supplied as a pair.
It’s worth noting that a 90cm version is available if you have the space and want to make more of a statement!
TIP: Extracting air through ducting does not require use of a charcoal filter. Optional charcoal filters are used to help remove cooking odours from the air before it is recycled back into the kitchen.
Type: | Chimney Hood |
Width: | 600mm |
Speeds: | 3 Speed |
Control type: | Push Button |
Extraction rate: | 320m3 |
Illumination: | 2 x 3w bulb LED |
Installation Height - Electric Hob: | 65cm minimum |
Installation Height - Gas Hob: | 75cm miminum |
Installation Template: | Supplied |
Cable termination: | 13a UK plug |
Cable length: | 150cm |
Fluid Dynamic Efficience (FDE): | 8.9 |
Fluid Dynamic Efficience Class (FDE): | E |
Light Efficiency (LE): | 15 |
Light Efficiency Class (LE): | D |
Grease Filtering Efficiency (GFE): | 75.9 |
Grease Filtering Efficiency Class (GFE): | C |

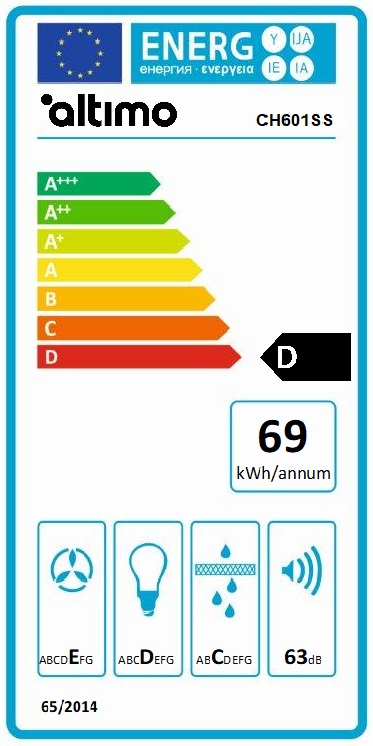

Energy Efficiancy Class (EEI): | D |
Duct or Recycle Compatible: | Yes |
Duct: | Ready from factory |
Duct Outlet Diameter: | 120mm round |
Charcoal Filter (optional): | Altimo CF003 |
Quantity Needed Per Change: | 2 required (2 supplied) |
Voltage: | AC220-240v 50hz |
Motor Power: | 125w |
Lamp Power: | 2 x 3w |
Total Power: | 131w |
Annual Energy Consumption (AEC) (kWh/a): | 69.2 |
Minimum Air Flow in normal use (m3/h): | 182 |
Maximum Air Flow in normal use (m3/h): | 291 |
Sound Level at Minimum Speed (dB): | 53 |
Sound Level at Maximum Speed (dB): | 63 |
Power Consumption in off mode (w): | 0 |
