• 3 Fan Speeds - Maximum 291m3 Extraction
  • Slider Control
  • Non-Branded Design
Colour: Stainless Steel
Where To Buy

Product Overview

This style of canopy hood is usually found inside a canopy or large chimney feature but because of their simple flat design they can be used in several other situations as well as it recesses nicely into a rectangle cavity.

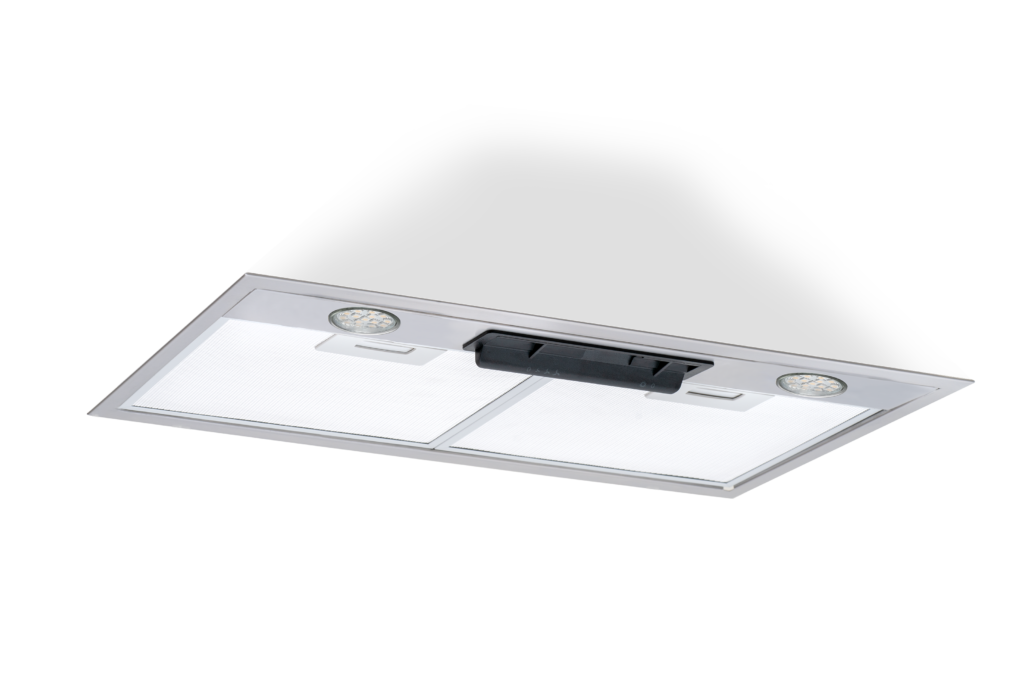

The CANH601SS is mostly hidden from view although the control panel with its light switch and three speed fan control is easy to get to – and of course once your light is turned on things become much brighter.

A pair of aluminium grease filters are there to remove the greasy deposits from your cooking air, before being ducted outside. The option of recirculating your cooking air and having it pass through charcoal filters is also available but you will need an Altimo CF003 filter for best results.

TIP: Extracting air through ducting does not require use of a charcoal filter. Optional charcoal filters are used to help remove cooking odours from the air before it is recycled back into the kitchen.

Features

3 Fan Speeds
530mm Width
291m3 Extraction Rate
See All Spec

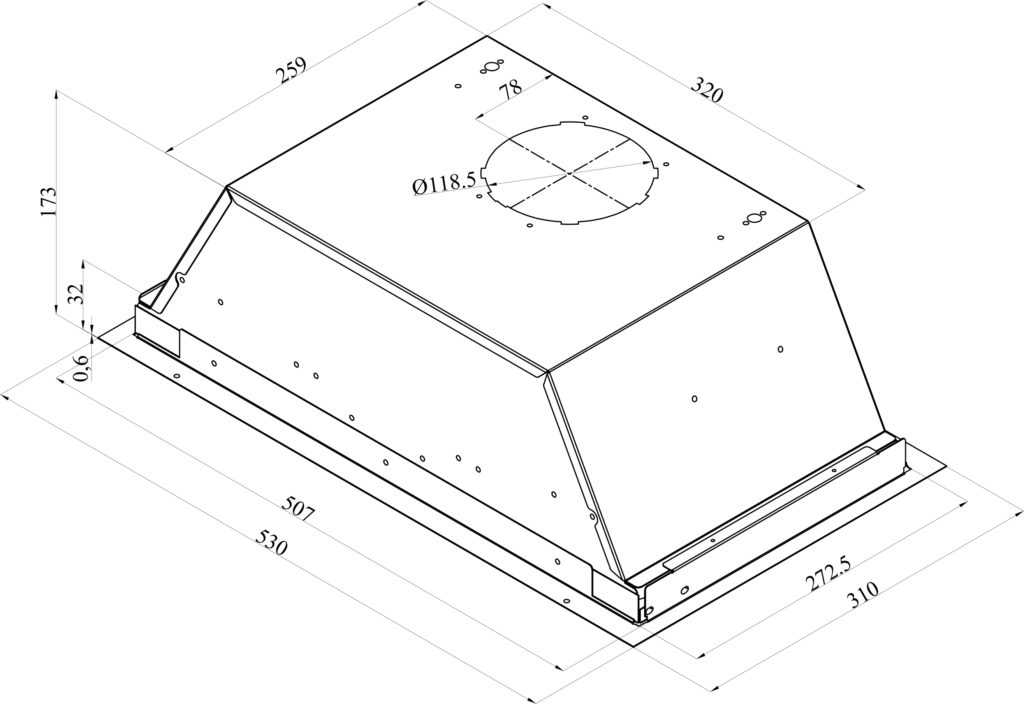

Type: Canopy Hood
Width: 530mm
Speeds: 3 Speed
Control type: Slider
Extraction rate: 291m3
Illumination: 2 x lamp (spot 6w LED)
Installation Height - Electric Hob: 65cm minimum
Installation Height - Gas Hob: 75cm miminum
Installation Template: Supplied
Cable termination: 13a UK plug
Cable length: 150cm
Fluid Dynamic Efficience (FDE): 8.9
Fluid Dynamic Efficience Class (FDE): E
Light Efficiency (LE): 60
Light Efficiency Class (LE): A
Grease Filtering Efficiency (GFE): 62.8
Grease Filtering Efficiency Class (GFE): E
Energy Efficiancy Class (EEI): D
Duct or Recycle Compatible: Yes
Duct: Ready from factory
Duct Outlet Diameter: 120mm round
Charcoal Filter (optional): Altimo CF003
Quantity Needed Per Change: 2 required (2 supplied)
Voltage: AC220-240v 50hz
Motor Power: 125w
Lamp Power: 2 x 3w
Total Power: 131w
Annual Energy Consumption (AEC) (kWh/a): 69.2
Minimum Air Flow in normal use (m3/h): 182
Maximum Air Flow in normal use (m3/h): 291
Sound Level at Minimum Speed (dB): 53
Sound Level at Maximum Speed (dB): 63
Power Consumption in off mode (w): 0
